DA-53Tx
DA-50Touch numerical press brake control
Touch, making easy easier
Touch comfort for numerical CNC
The new DA-53Tx touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality.

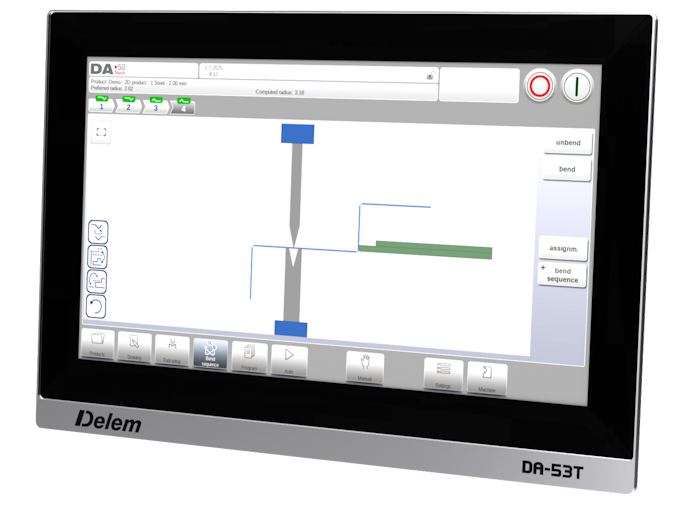

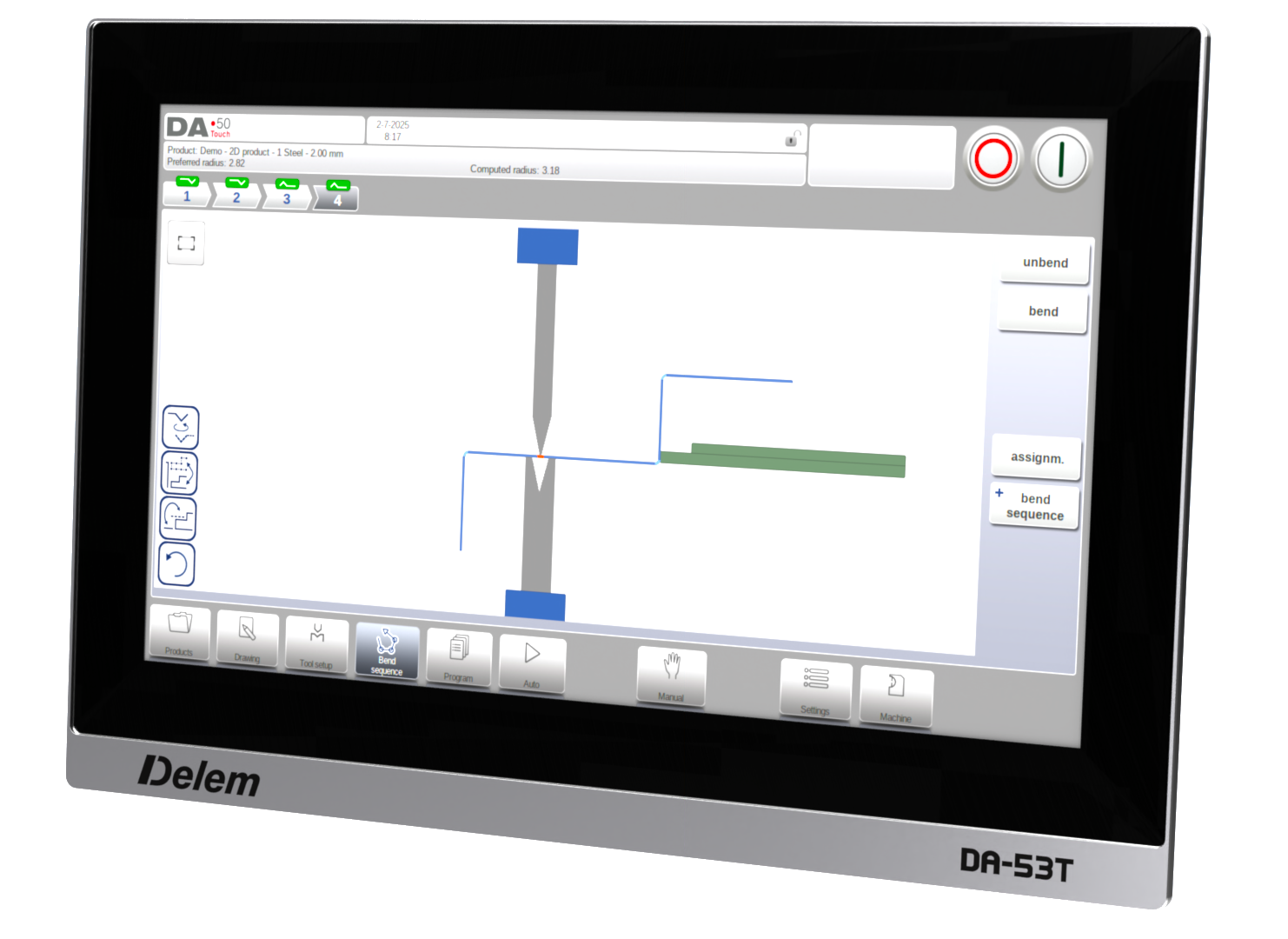

The DA-50T-series offers easiest CNC programming based on the proven Delem touch screen user interface. The new compact DA-53Tx with extra large screen adds a state of the art complete touch control solution for synchronized press brakes.

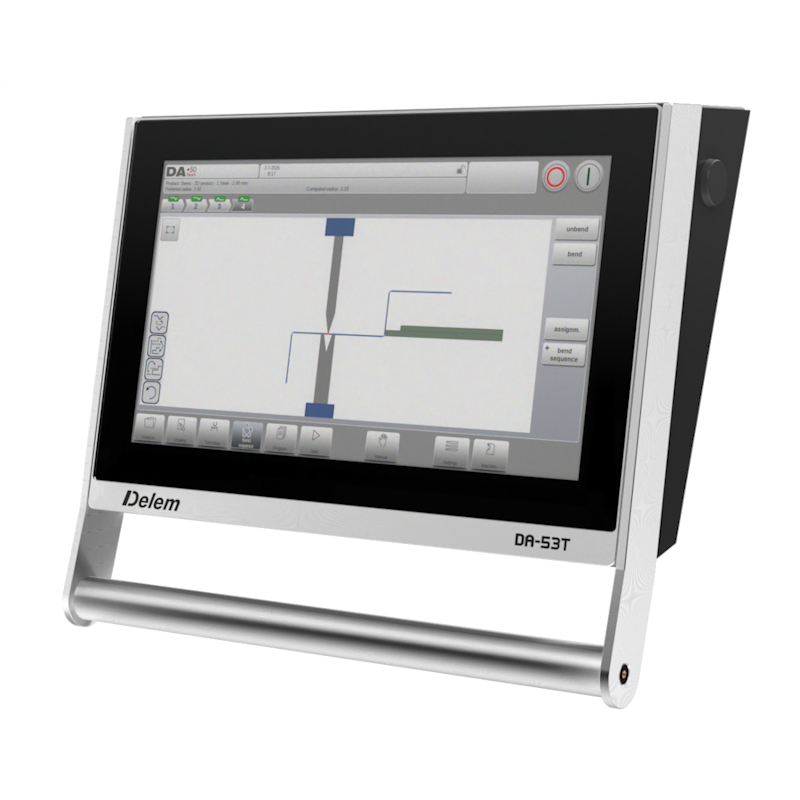

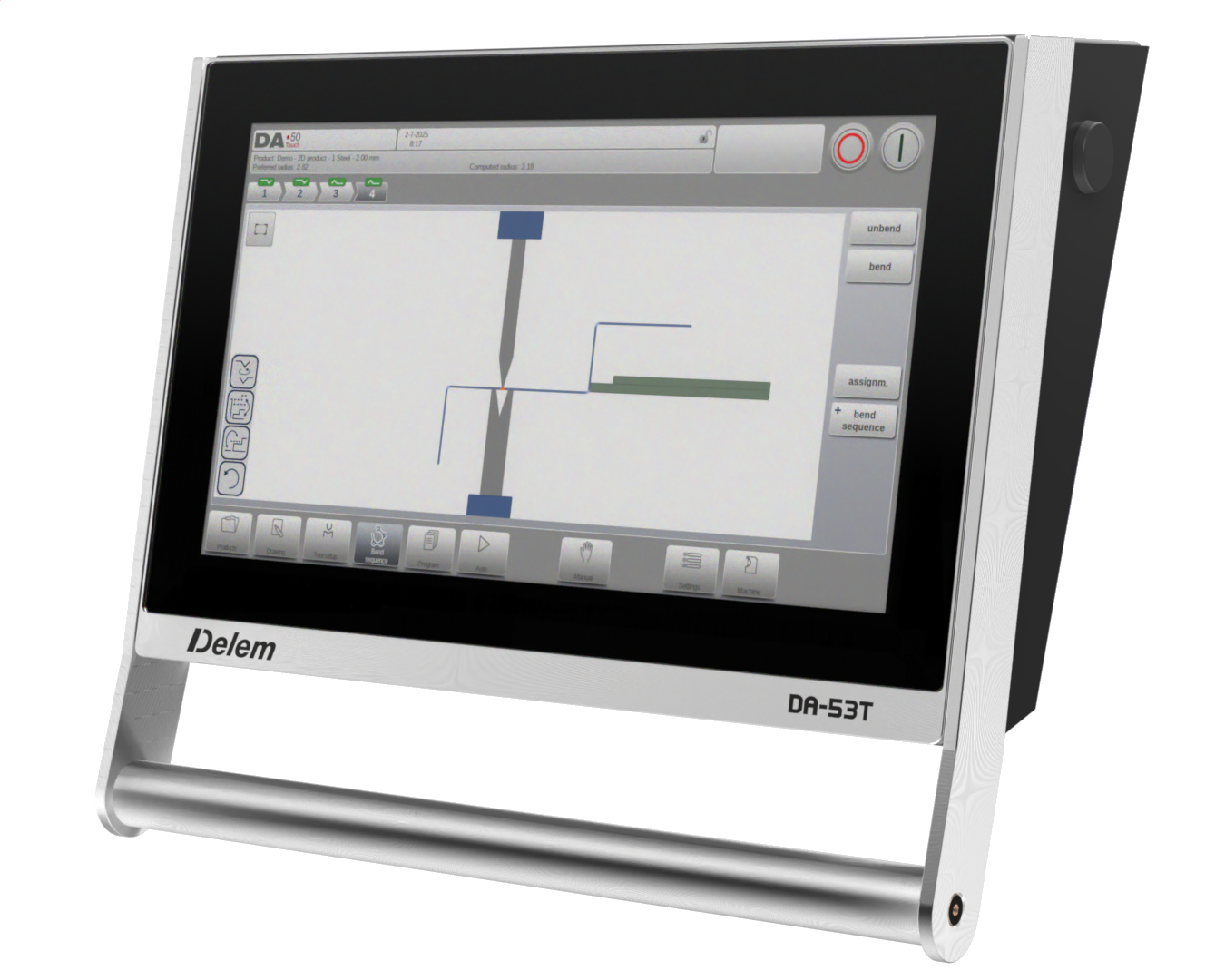

This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing. Its 15" wide screen high resolution colour TFT, with industrial grade multi touch technology, gives access to the user friendly Delem user-interface. It enables direct “hot-key” touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application.
Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.
Next to a full package of functionality and functions which make everyday work as easy as possible, optionally 2D graphical product and tool programming is supported. USB interfacing is standard and enables fast product and tool backup using USB memory sticks.
Compact solutions
The DA-53T touch CNC control provides a modern compact and versatile solution for powerful economic press brake applications.
Compact
Fit for the purpose, enabling lean machine design with all important functionality directly at hand.
Easy-to-use
Delem touch navigation offers proven user friendliness and consistency ensuring user-efficiency.
Productive
Excellent machine behavior enabling smooth and fast bending at highest reliability.
No compromise
Machine functions and integration of partner systems, not compromising compatibility and performance.
Technical data
| DA-53Tx | |||
|---|---|---|---|
| Standard | |||
| Display | Color LCD display | ||
| Type | 15" TFT, high brightness | ||
| Resolution | 1366 x 768 pixels, 32 bit colour | ||
| Touch sensor | Full touch screen control (PCT-touch) | ||
| Backlight | LED | ||
| Storage capacity | 1 GB | ||
| Product and tools memory | 256MB | ||
| Exchangeable memory | USB flash memory drive | ||
| Offline software | Profile-53TL | ||
| Options | |||
| Networking | Standard Windows® networking | ||
| Tandem capability | TandemLink | ||
